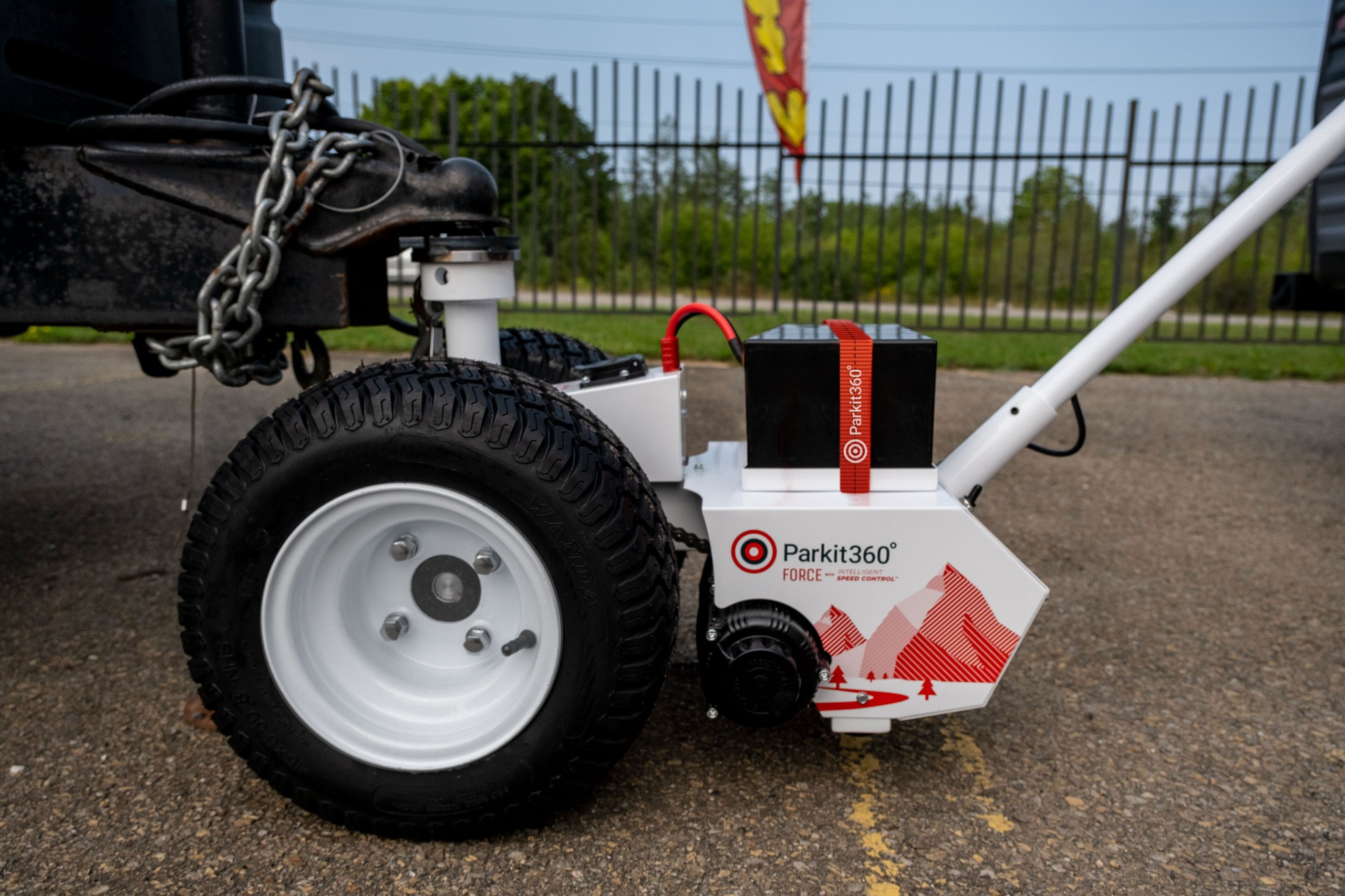

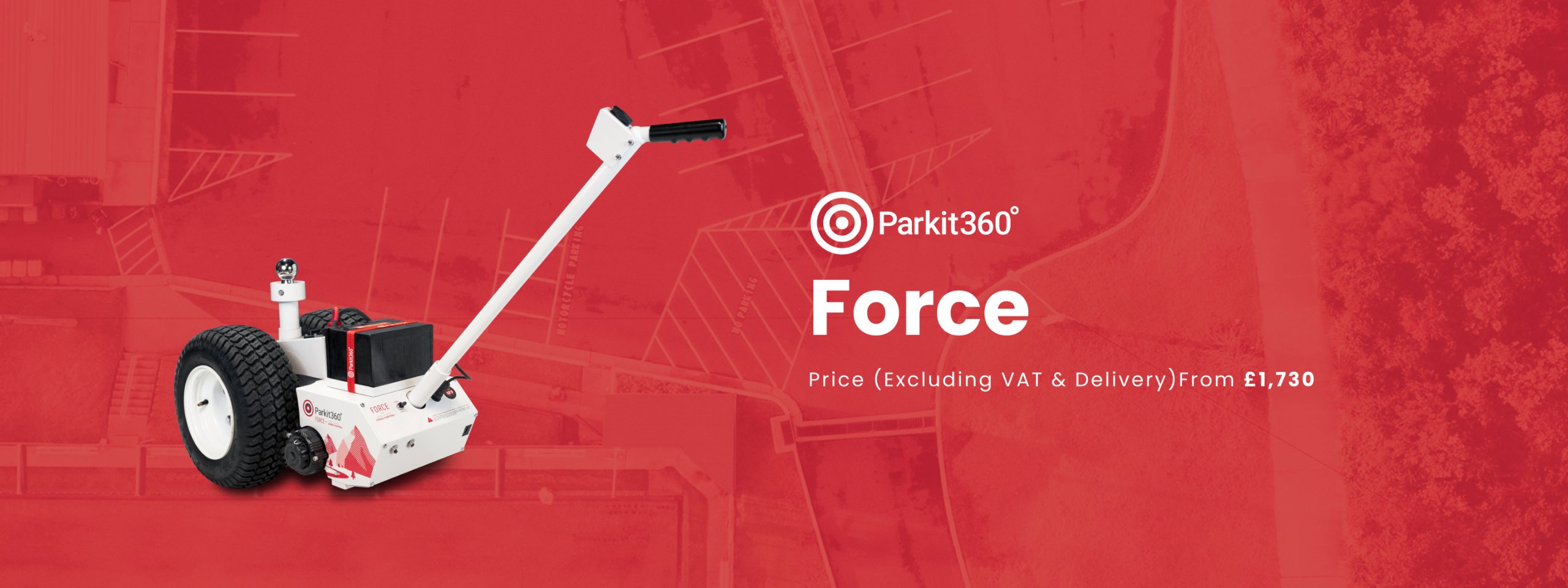

  • Force ISC™ Trailer Dolly

    Simple parking with almost every trailer type right from the box.




    Compact and portable and fits into the back of hatchback vehicle.

    Intelligent Speed Control and moves up to 4,500 KG subject to engagement of brake controller.


    ModelCapacityMotor / BatteryControlPrice (Excluding VAT & Delivery)

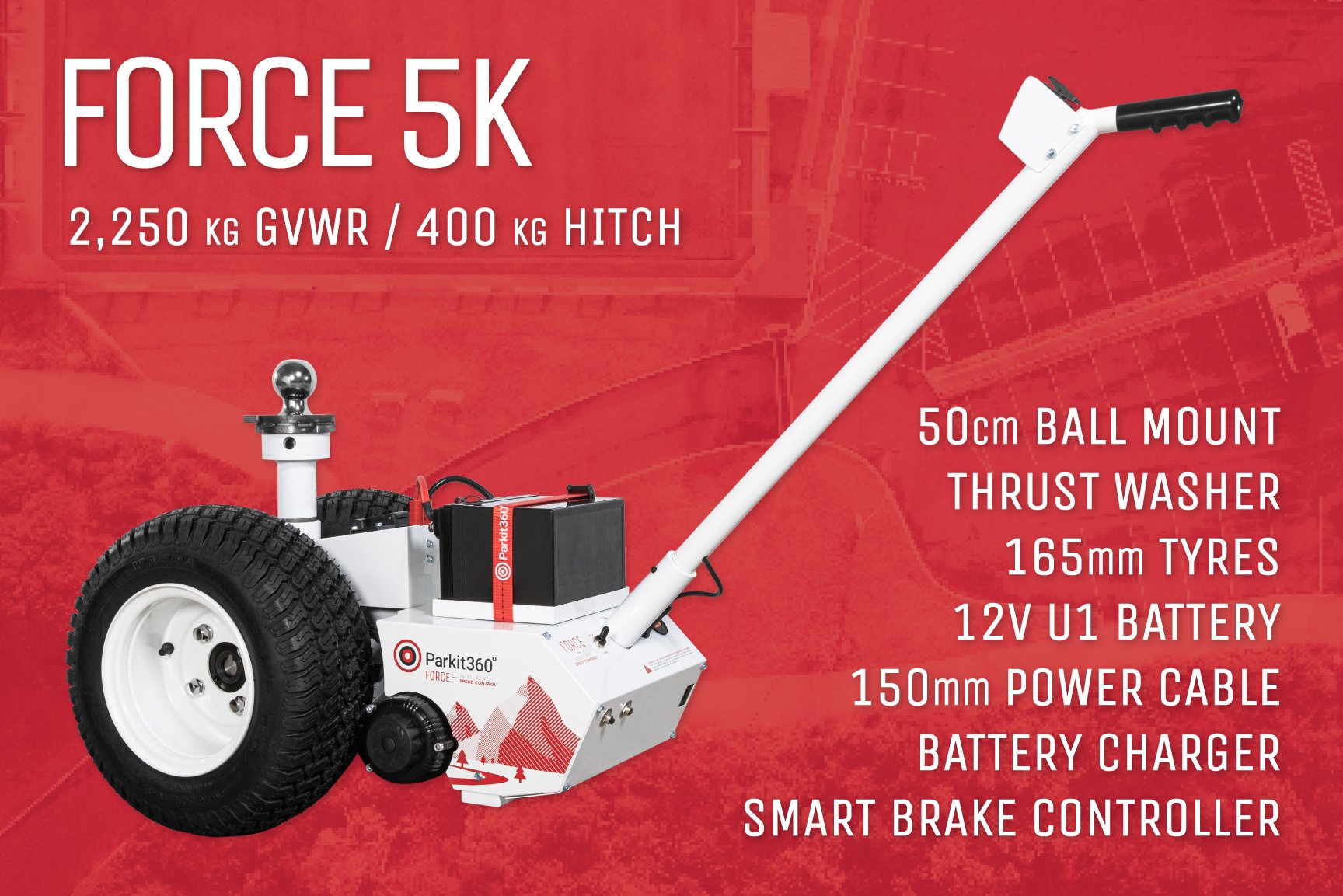

    Force ISC 5 K2,250 kg1.5 HP Bosch 12v DC Electric
    U1 Battery Kit
    Manual
    £1,730
    Force ISC 10 K
    4,500 kg
    1.5 HP Bosch 12v DC Electric
    U1 Battery Kit
    Manual
    £2,220

    Model includes 508mm ball mount adapter, thrust washer, 2x hitch balls, battery charger, brake controller and 165mm wide tyres as standard









    • About

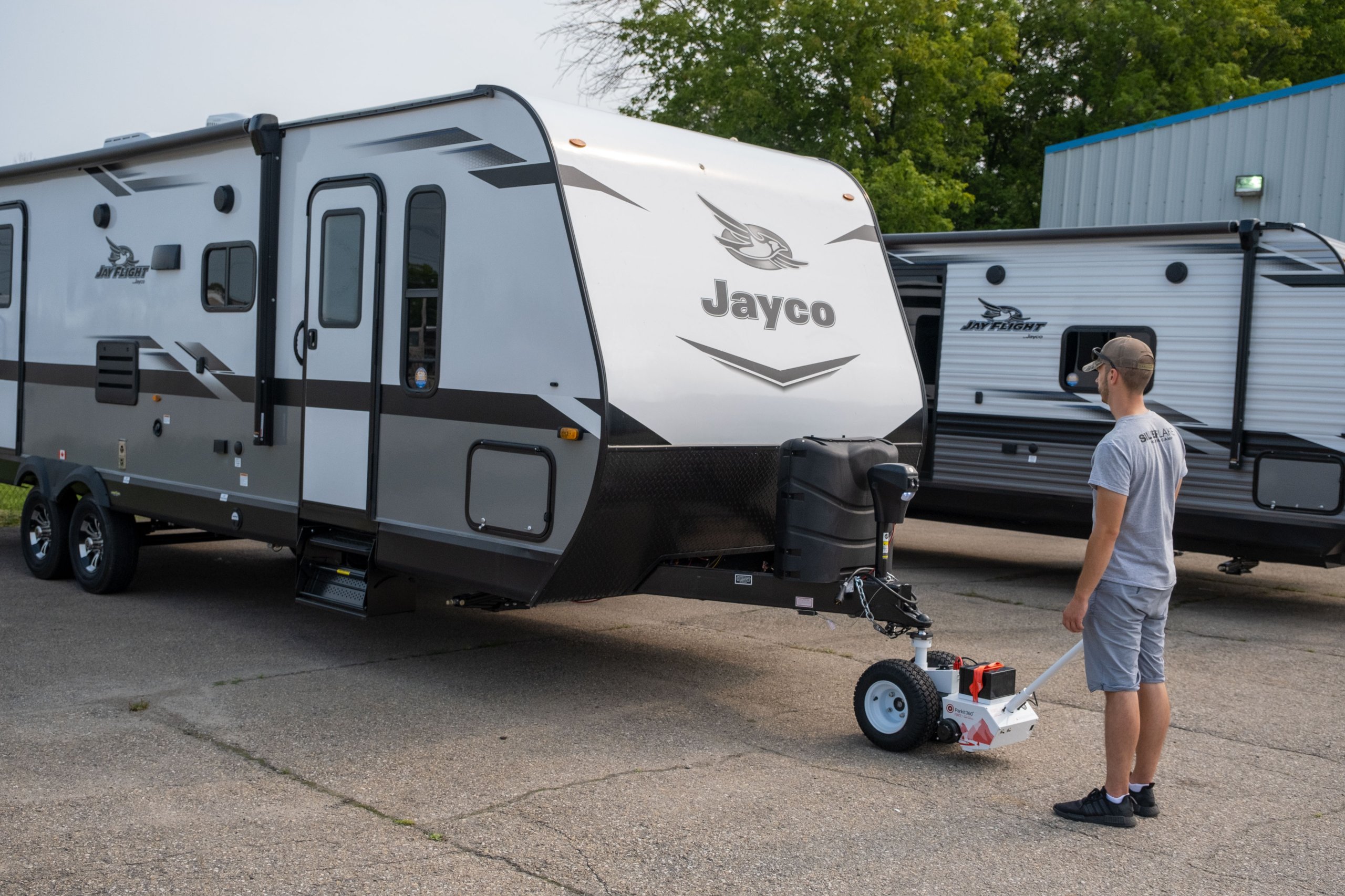

      Simple parking for every trailer

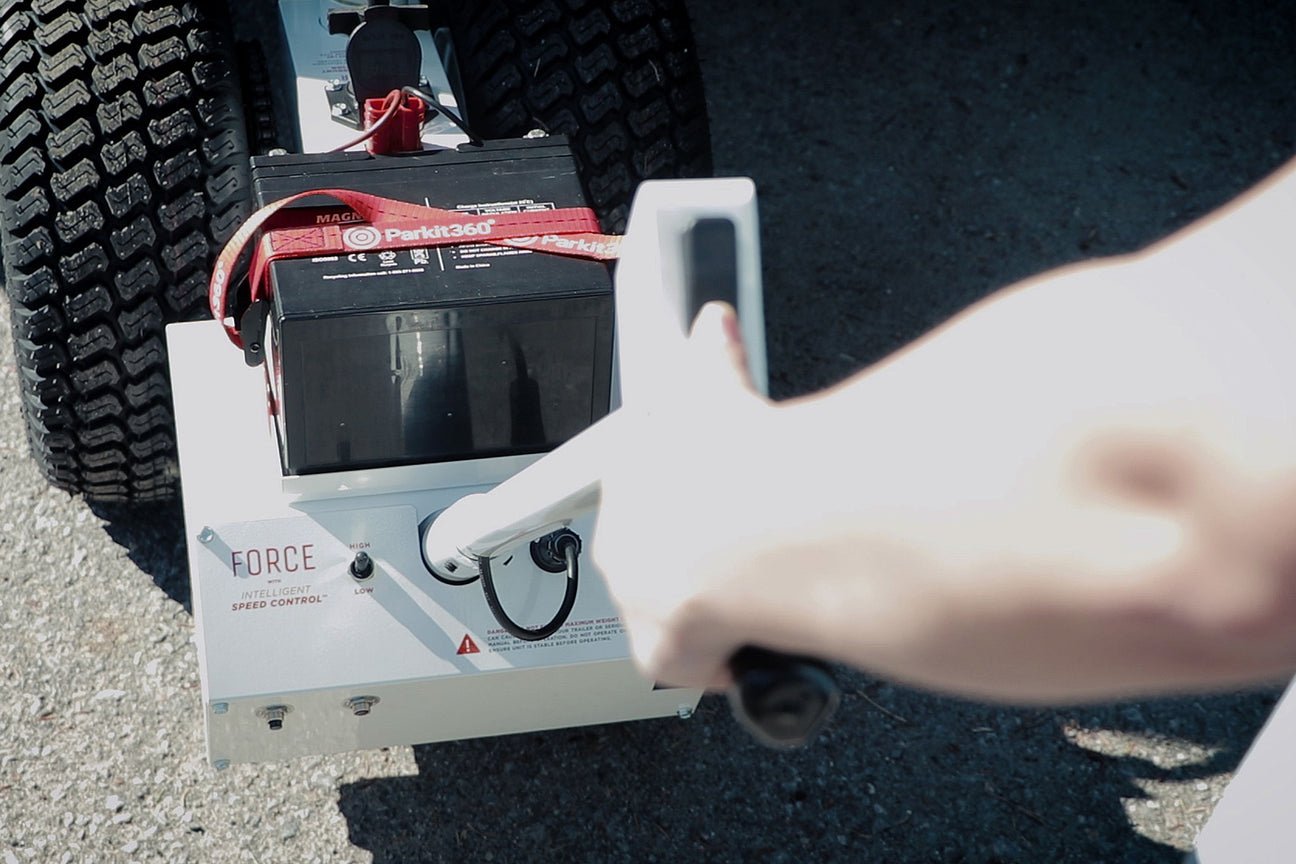

      Engage Motor, Connect Battery, Secure Hitch Adapter and Go!

      Compatible with almost every Trailer right out of the box.

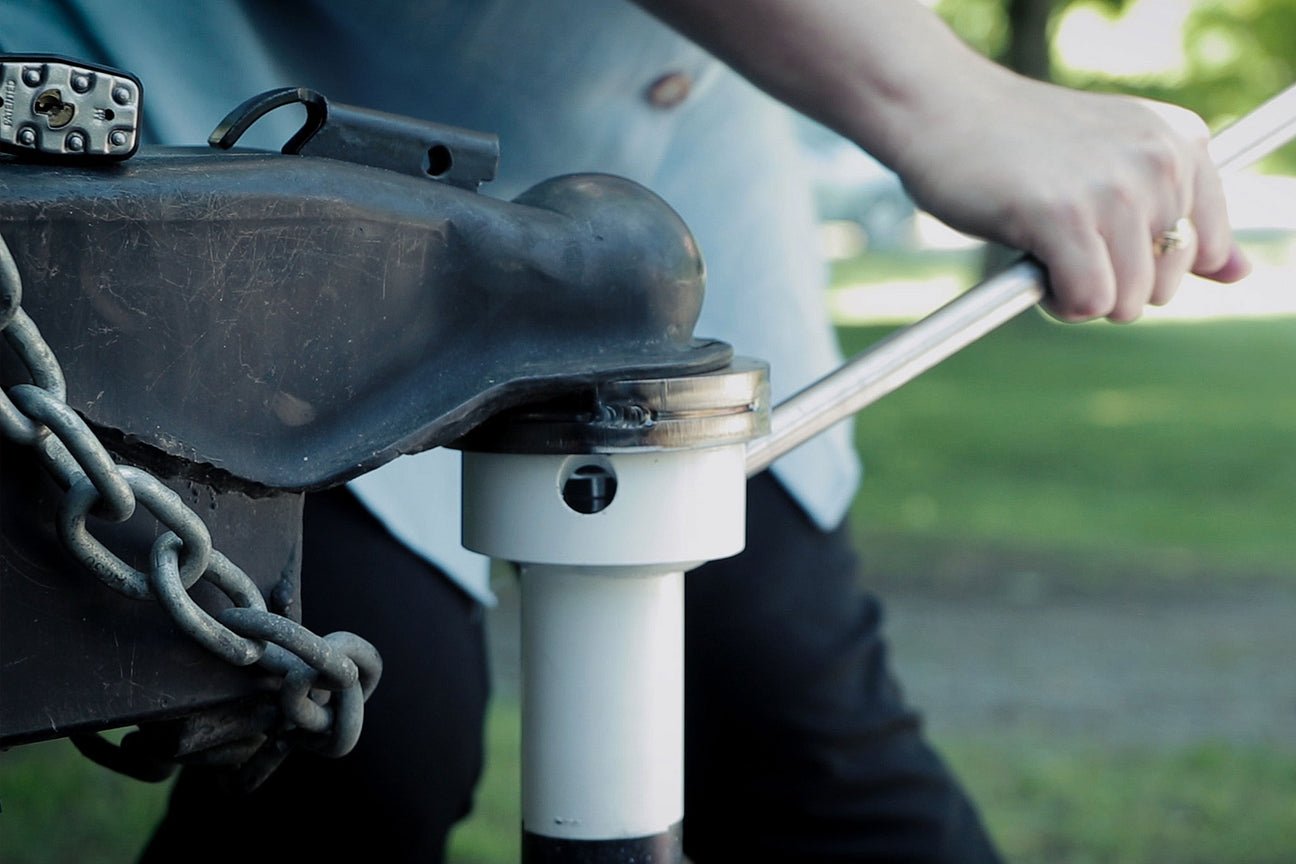

      BALL MOUNTED STABLELOCK TECHNOLOGY

      Each package comes with the Standard 508mm Ball Mount Adapter and Two Hitch Balls: 50mm and 2 5/16".

      BATTERY POWERED

      U1 Battery Kit: Includes a fully charged 12V Interstate® Battery.

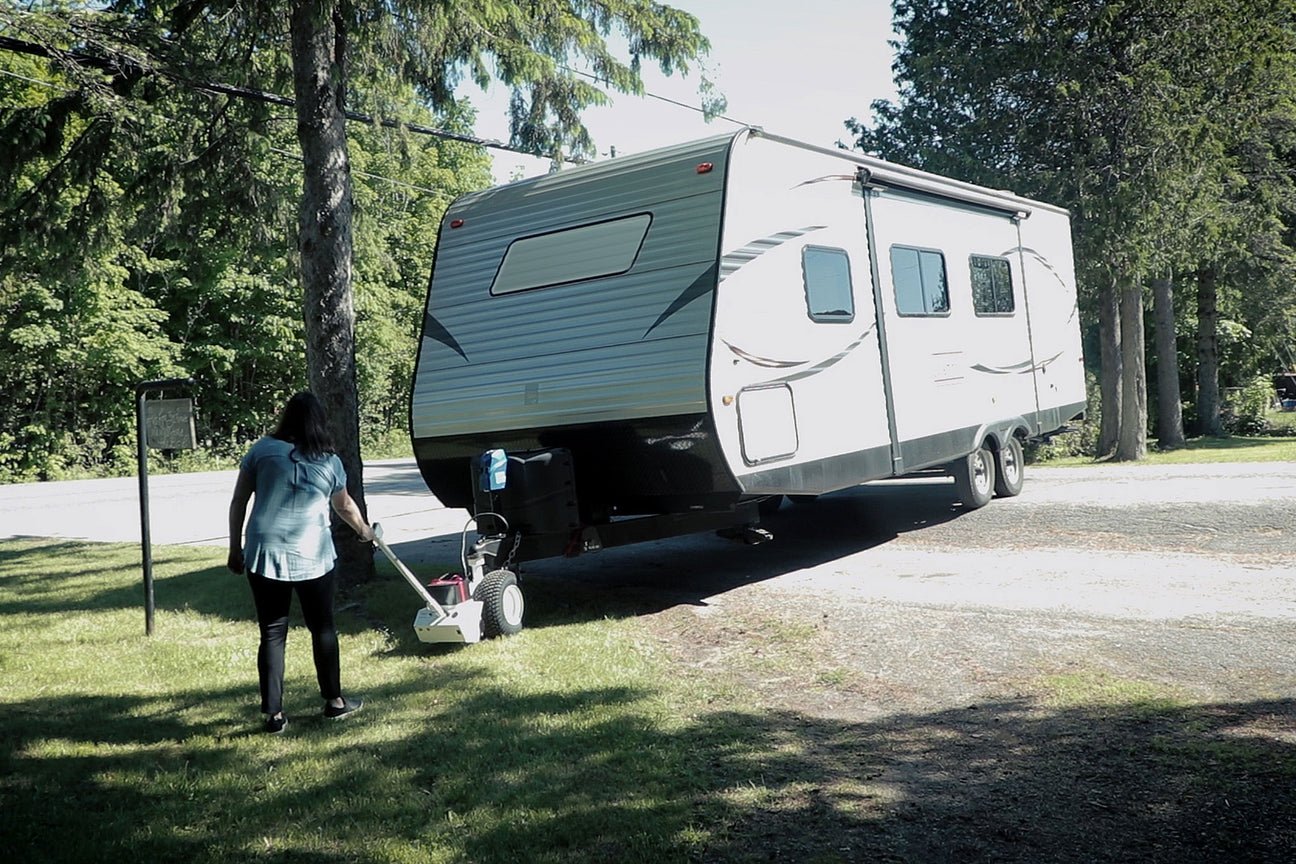

      WORKS ON FIRM GRASS, PACKED GRAVEL, AND ASPHALT

      165mm Wide Tyres provide plenty of traction on varied terrain and on a maximum grade of 6%.

      COMPACT & PORTABLE

      The Force Dolly weighs approx. 37 KG without the handle, ball mount, or battery installed. It's easy to disassemble and fits into standard hatchback vehicle, or trailer storage compartment.

      Force Manual 2023 v4.8

    • Overview

      Overview

      Maximum Gross Weight2,250 Kg  -   Force 5K
      4,500 Kg  -   Force 10K
      Maximum Hitch Weight400 Kg


      • 165mm Tyres
      • 508mm Ball Mount with Tightening Bar
      • Two Hitch Balls: 50mm & 2 5/16"
      • European Thrust Washer
      • U1 Battery Kit - Includes 12V Interstate® Battery, Mounting Tray, Strap and 150mm Power Cable
      • Built-In Battery Charger
      • Smart Brake Controller
      • Controls Electric & Surge Brakes via 7-Pin plug.

    • Specification

      DOLLY FEATURES

      Intelligent Speed Control™ (ISC)

      Switch between High and Low-Speed anytime for Fast or more Precise Parking. Motor Starts and Stops gradually to prevent damage to your trailer from sudden stopping, a common issue with competitor’s dollies.

      1.5 HP MOTOR: Custom 1.5 HP Bosch Motor for the Ultimate Power and Performance.

      FREEWHEEL KNOB: Engages or Disengages Motor from Drive to Neutral to move the Dolly Without Power.

      VOLTMETER: Digital Volt Meter that measures and displays Power Level of Battery.

      CIRCUIT BREAKERS: Protects Motor and Smart Brake from power surges.

      BATTERY CHARGER: Battery Tender. Activates when the Dolly is plugged into a Wall Socket. Stops charging automatically when full. Disconnect the charger after an over-night charge (10 hrs Max).

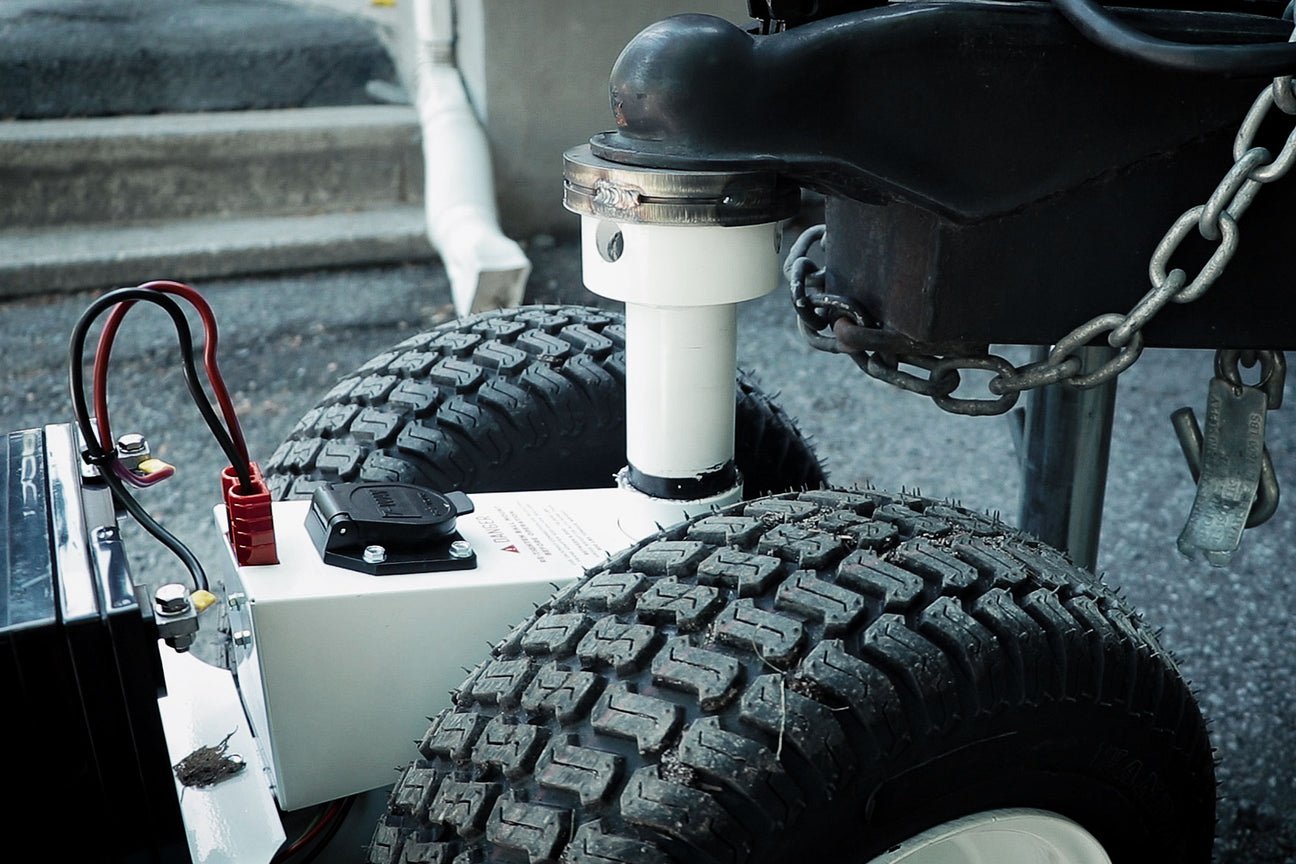

      SMART BRAKE: 7-Way Power Plug that Controls the Trailer’s Electric or Surge Brakes.

      SPECIFICATIONS

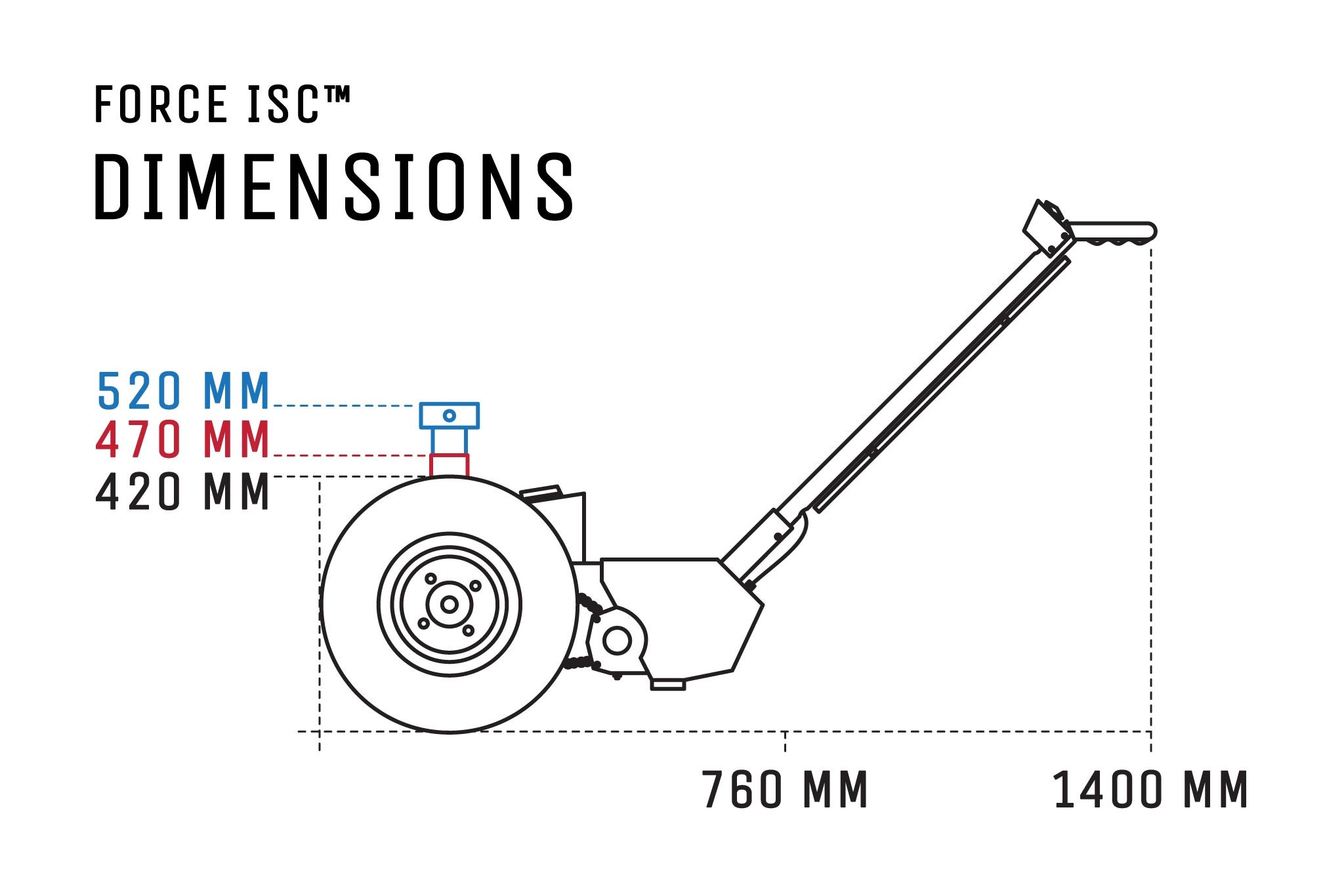

      DOLLY DIMENSIONS:

      762mm L x 483mm W - Approx. 55 KG With Battery

      Receiver Tube Height: Approx. 457mm from Ground

      SHIPPING DIMENSIONS:

      975mm x 457mm x 508mm - Approx. 64 KG With Battery

      RUN-TIME: 1.5 - 2 hrs (Depending on Amp Draw)

      TYRE PRESSURE: 40 PSI

      BALL MOUNT HEIGHT: 508mm from Ground to Top of Ball Mount

      HITCH BALL SIZES: 50mm & 2 5/16"
